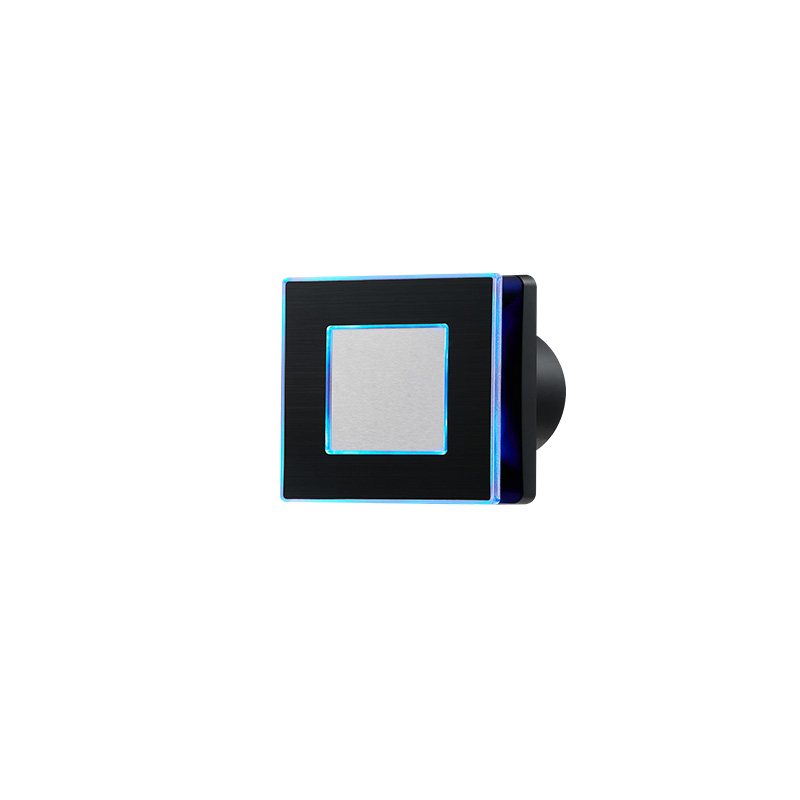

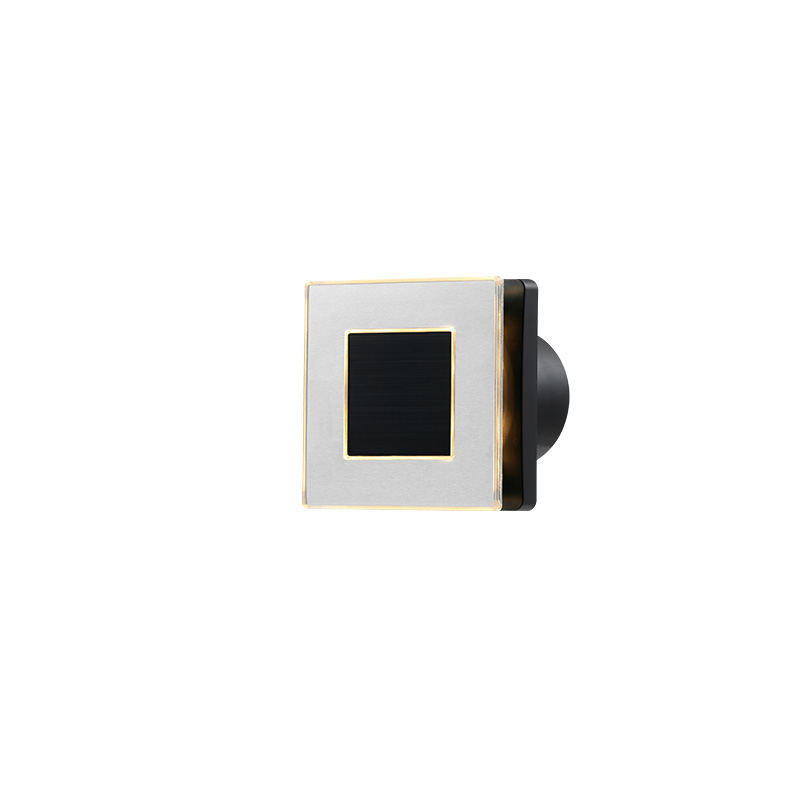

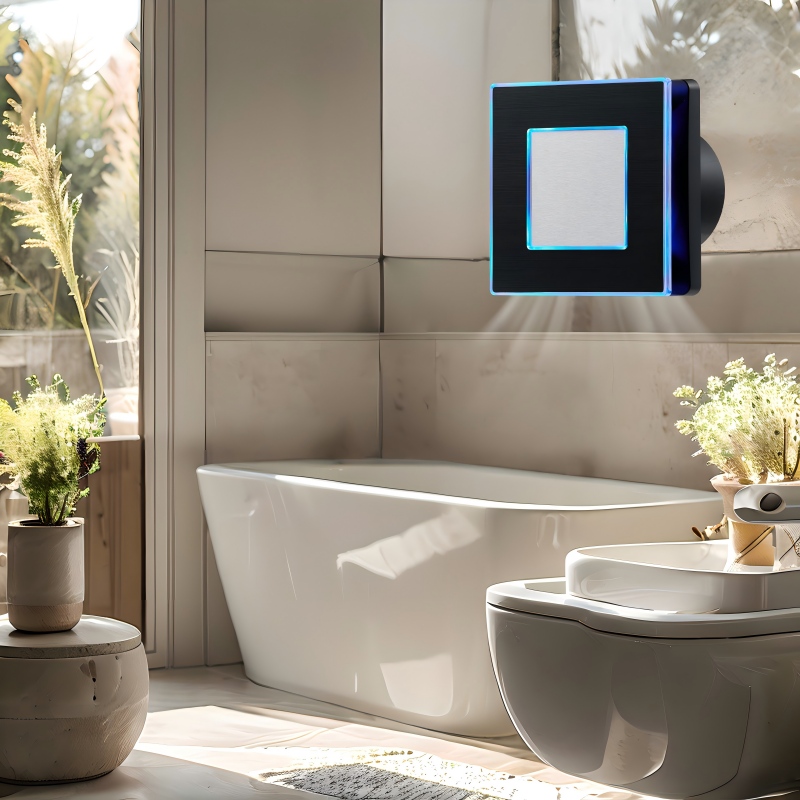

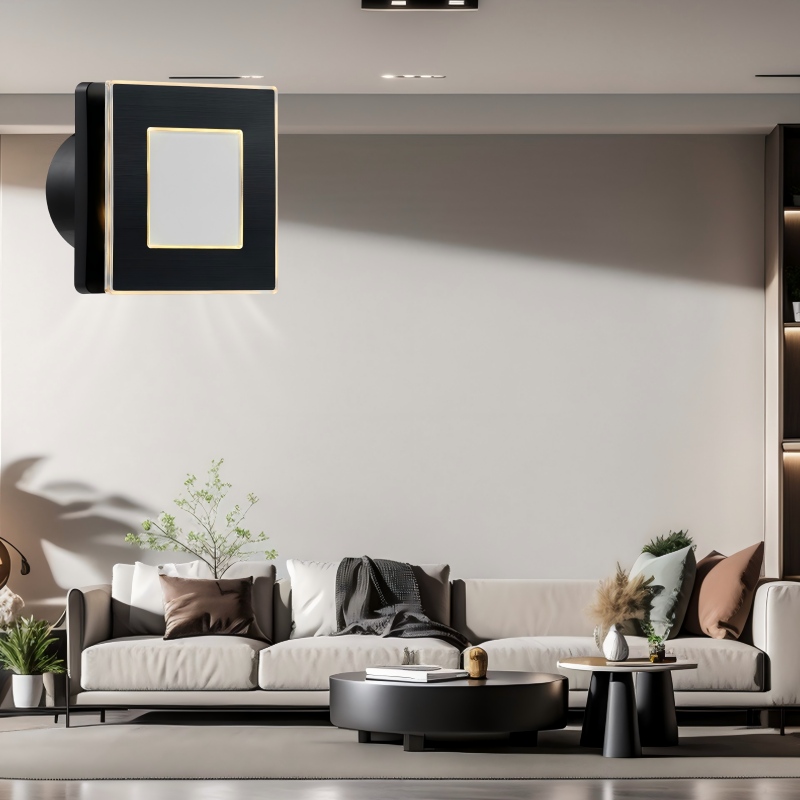

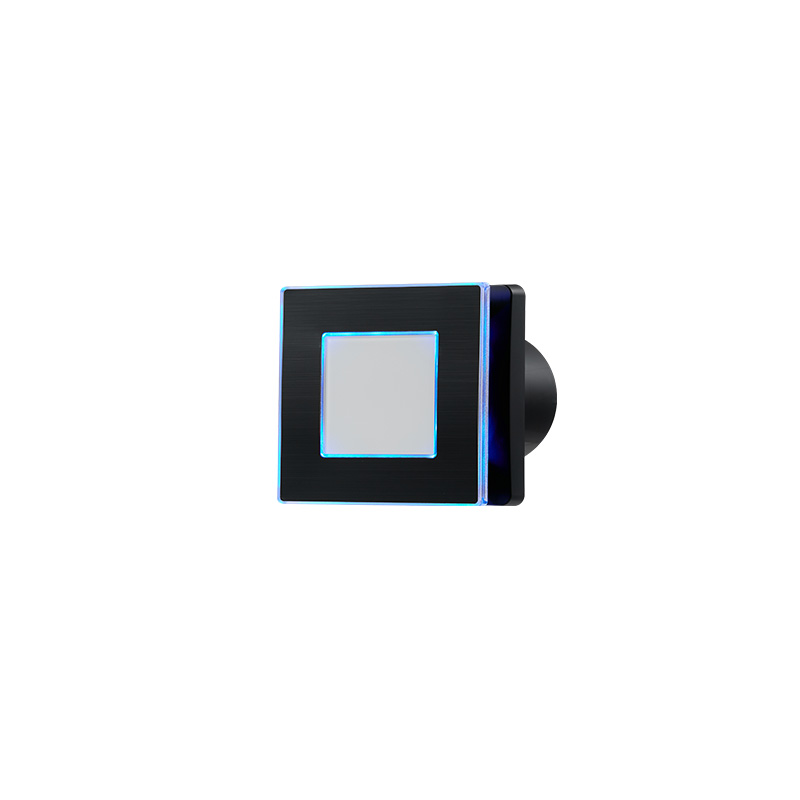

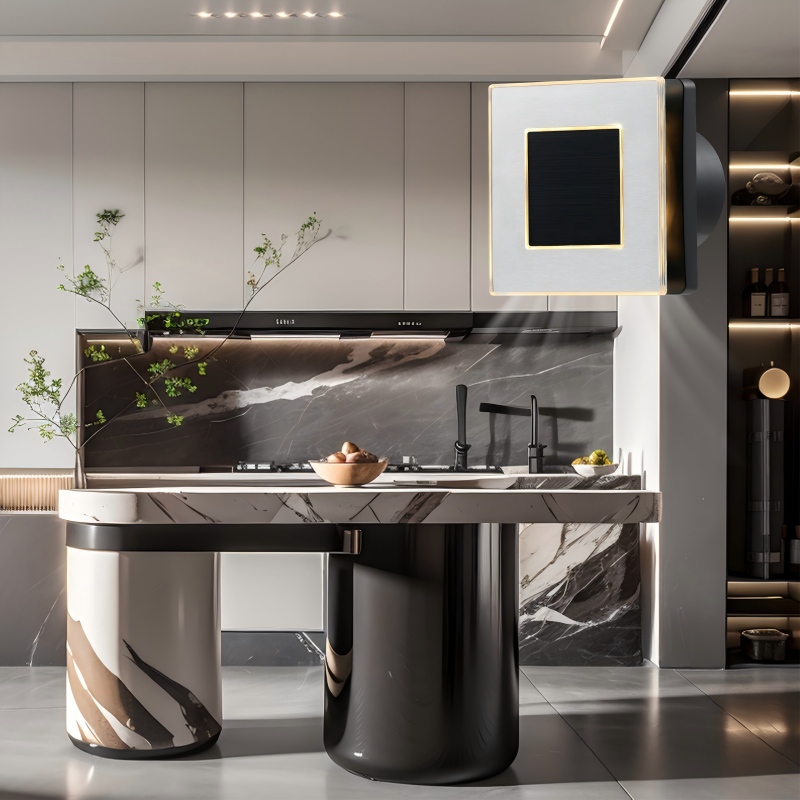

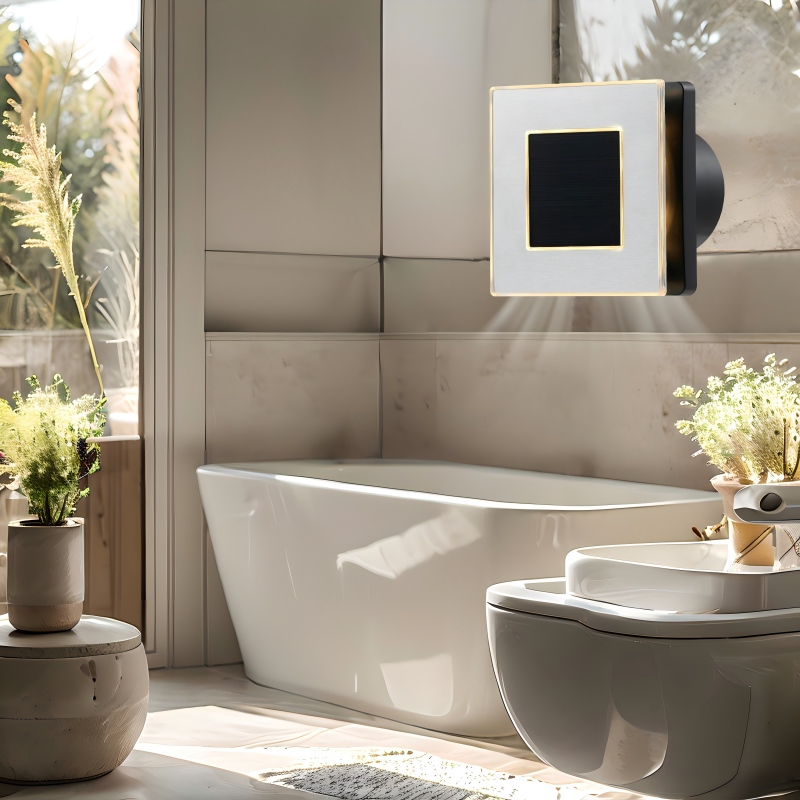

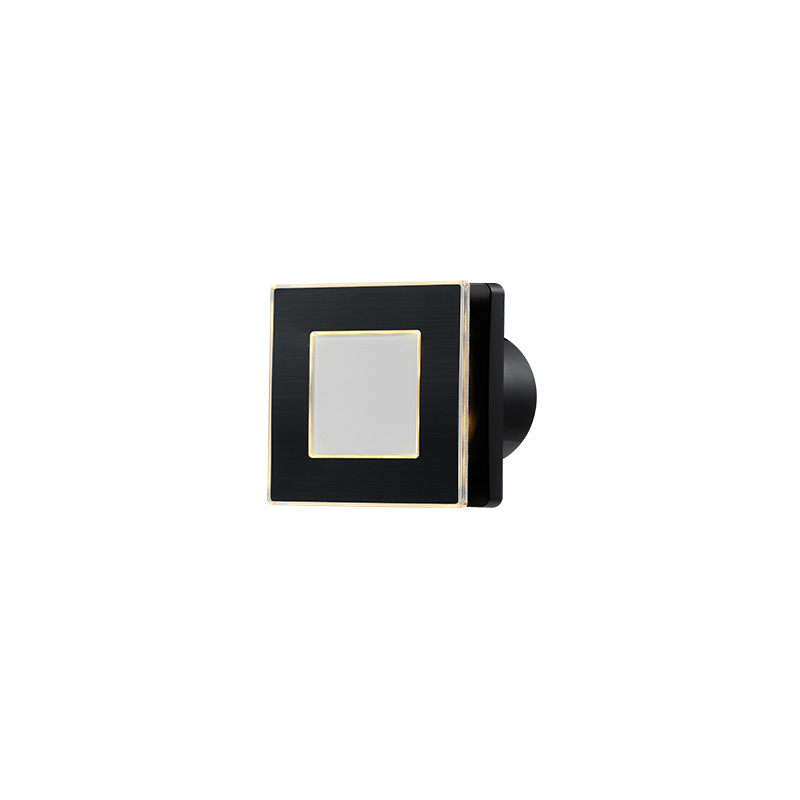

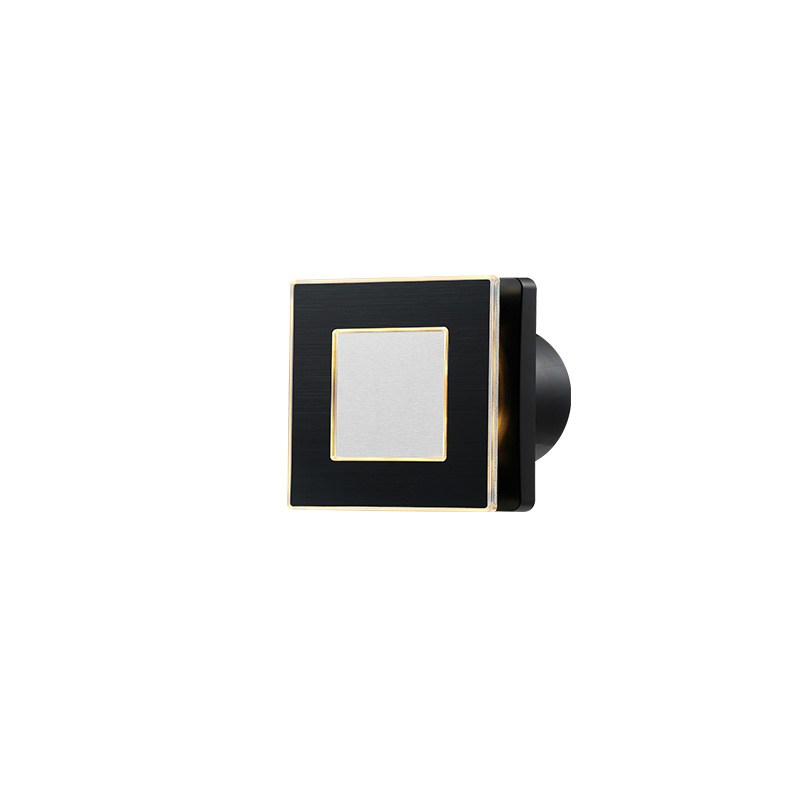

Smart Tempered Glass Panel Bathroom Exhaust Fan With LED Light
Product Video
Product Specification
| Product Dimensions | 158 W x 120 D x 158 H mm |
| Product Weight | 790 g |
| Color | black / white / silver grey |
| Style | Luxuxrious Design |
| Material | tempered glass + ABS plastic |
| Install | Wall Mount or Ceiling Mount |
| Electric Current Type | AC |
| Voltage | 230 Volts |
| Wattage | 10 watts |
| Air Flow Capacity | 100 m3/h |
| Sound Level @ 3 metres | 31 dB |
| IP rate | IP45 |
| Warranty | 3 years |
| Certificate | CE-EMC , CE-LVD, SAA , UKCA ,ROHS, REACH |
| Packing size for outer box (16 pcs) | 549*341*356 mm |
| Weight for outer box | 14.5 kg |
| Packing size for gift box (1 pc ) | 163*133*168mm |
Product size
| size | ||||
| A | B | C | D | E |
| 158 | 158 | 39 | 81 | 102 |
Product structure
Finish
Features

Humidistat
When a humidistat detects high humidity in the room this will trigger the fan to start automatically, regardless of whether the fan is switched on at the wall. This is useful where the bathroom might remain humid for a period of time after.

Adjustable Timer
A fan with timer can be set to run after it has been switched off . This means that humid air from a bathroom will continue to be extracted after someone has left the room . The adjustable time is from 2 minutes to 30 minutes .
Waterproof Design: Our bathroom exhaust fans are designed to withstand the humid conditions of the bathroom environment. With its waterproof construction, you can rest easy knowing the fan won't come into contact with water, making it a durable and reliable solution for long-term use.

Easy To Install
Designed for easy installation, our bathroom exhaust fans can be easily mounted on the ceiling or wall, blending seamlessly into your existing bathroom layout. With clear instructions and all the necessary hardware, you can have your new ventilation system up and running in no time.

Energy Efficiency
Our exhaust fans are designed with energy efficiency in mind, helping you save on utility costs while maintaining a healthy indoor environment. Low power consumption and high-performance operation make it an eco-friendly choice for your home.
Options for LED backlighting
![]() |
![]() |
![]() |
| warm white color | blue color | cool white color |
